Robot Challenge: Stay in Ring Advanced

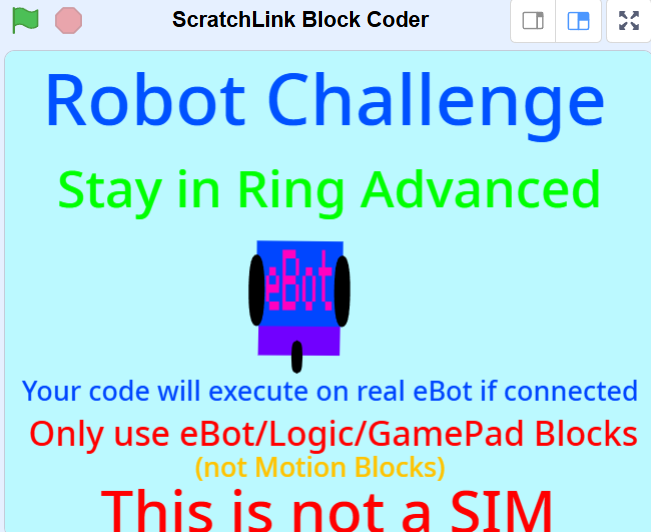

Stay in Ring thumbnail

Challenge Description

Robot Challenge Description: Stay in Ring Advanced
– eBot is on a SUMO ring either white with a black ring or black with a white ring and must stay inside the ring using the both the LHS & RHS light sensors and backing off the line in the opposite direction of the light sensor that detects the line.

Code the eBot sprite so that eBot behaves as below:
– continuously moves without stopping for more than 1 second
– always stays inside the black ring
– never drives completely over the black ring line
– moves as fast as possible
– randomly changes direction both forwards and backwards
– reverses first when over the black line so that it’s back end doesn’t go outside the black ring
– reverses away from the black line in the opposite direction of the light sensor that detects the black line eg reverse right if left light sensor detects line

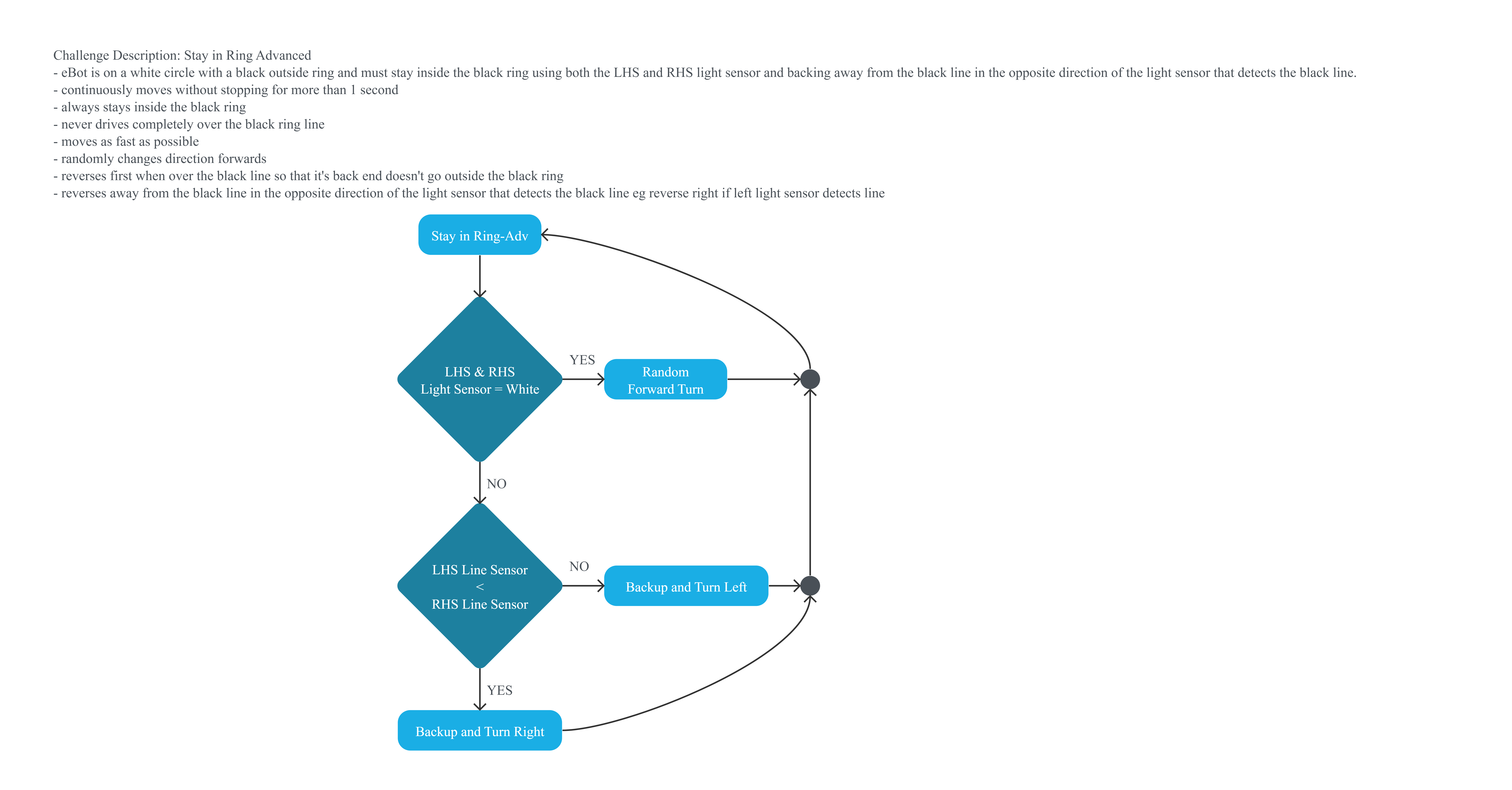

Flowchart

Project Flowchart
