Simulator Challenge: Line Plot Core
Challenge Description
Matrix SIM Line Plot Core
– draw an X and Y axis
– plot X = Y from X=3 to X=13.
– use variables for X and Y
– plot one point at a time with a delay

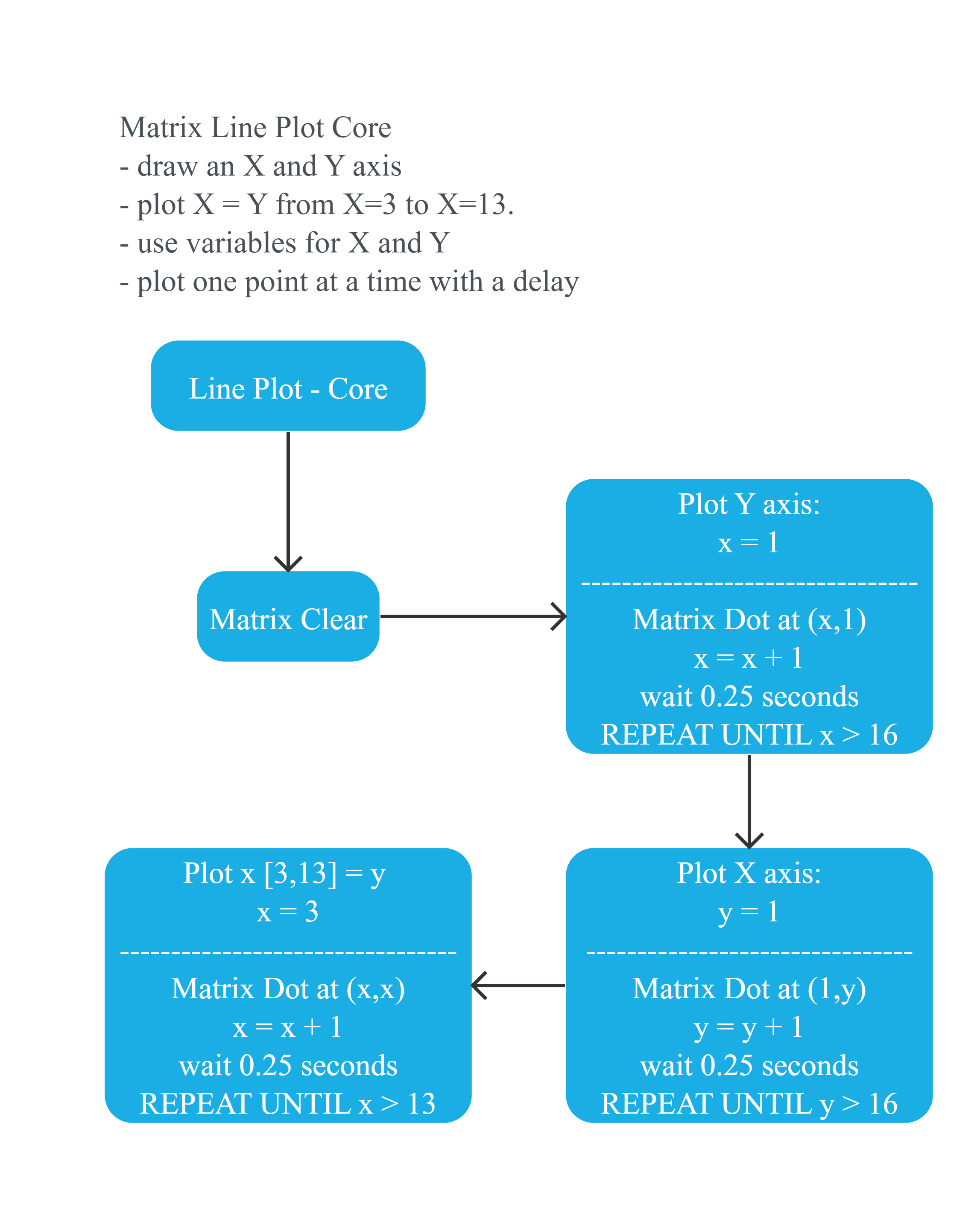

Flowchart
Matrix SIM Line Plot Core
– draw an X and Y axis
– plot X = Y from X=3 to X=13.
– use variables for X and Y
– plot one point at a time with a delay
